1 What do I love about aes()?

The aes() function is a domain-specific language (DSL) embedded inside R — a Lisp-y function that deeply ties with lazy evaluation, quosures, and deep integration with the tidyverse.

What keeps pulling me back is how elegantly it balances simplicity for beginners with incredible power for advanced use — all without ever feeling clunky.

2 Mapped vs Fixed Aesthetics

One of the first things to understand is the distinction between mapped and fixed aesthetics.

box::use(
    ggplot2[ggplot, aes, geom_point]
)

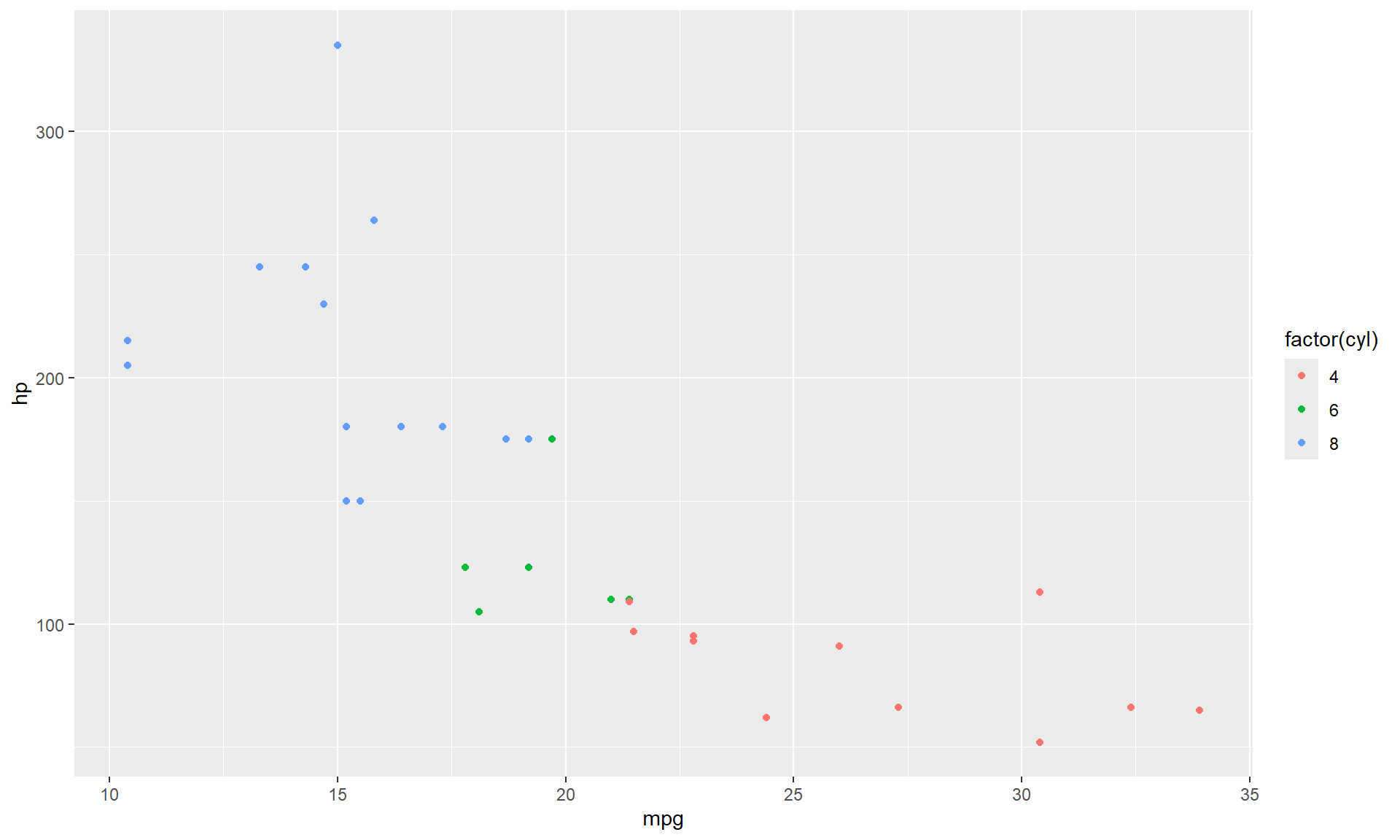

2.1 The colors are mapped through groups

ggplot(mtcars, aes(x = mpg, y = hp, color = factor(cyl))) +
    geom_point()

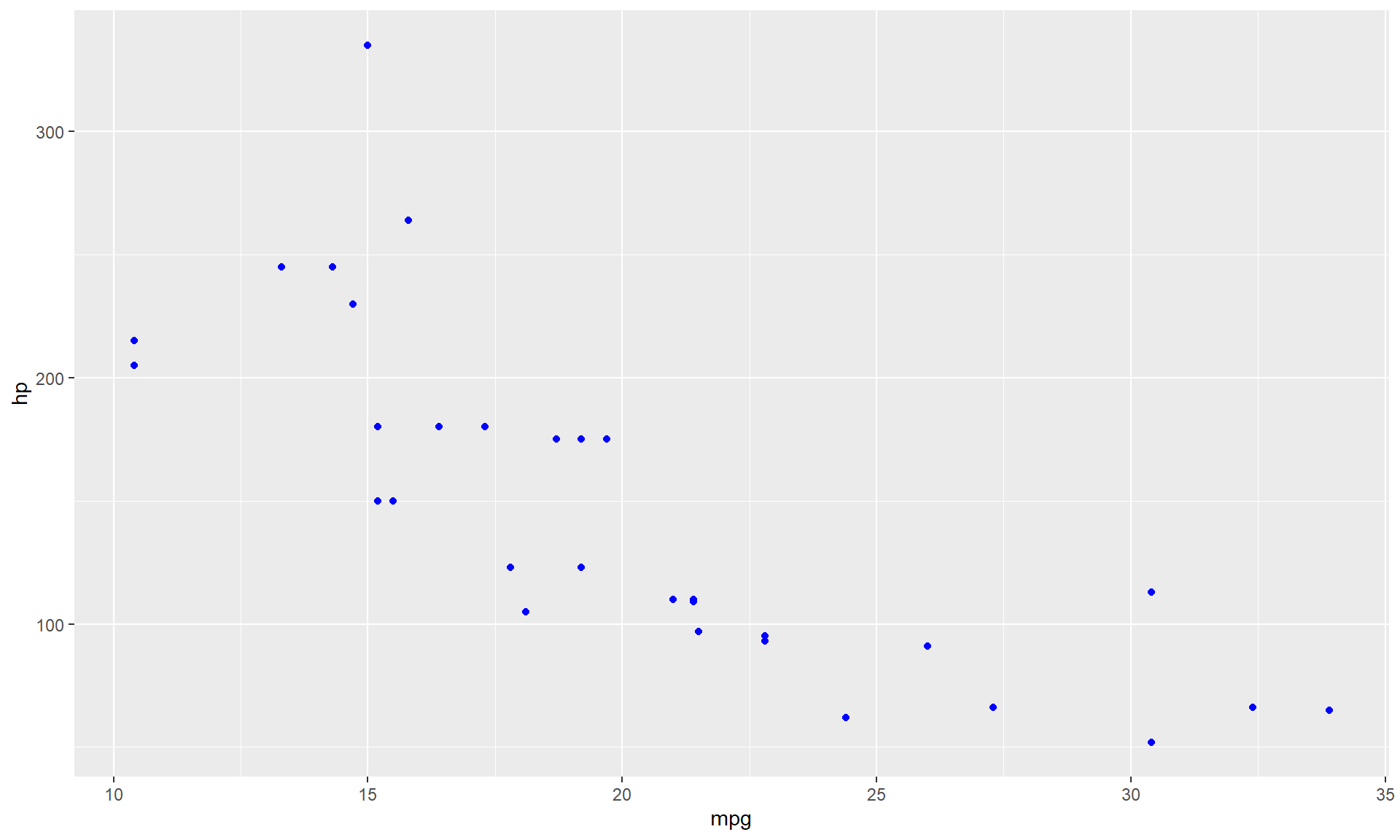

2.2 The color is fixed for all points

ggplot(mtcars, aes(x = mpg, y = hp)) +
    geom_point(color = "blue")

When you put an aesthetic inside aes(), it’s mapped to a variable. Outside aes(), it’s fixed to a constant value. This distinction is crucial but often trips up beginners.

3 The group Aesthetic

The group aesthetic controls how ggplot2 groups data for statistical transformations and geoms like lines.

box::use(
    ggplot2[ggplot, aes, geom_line]
)

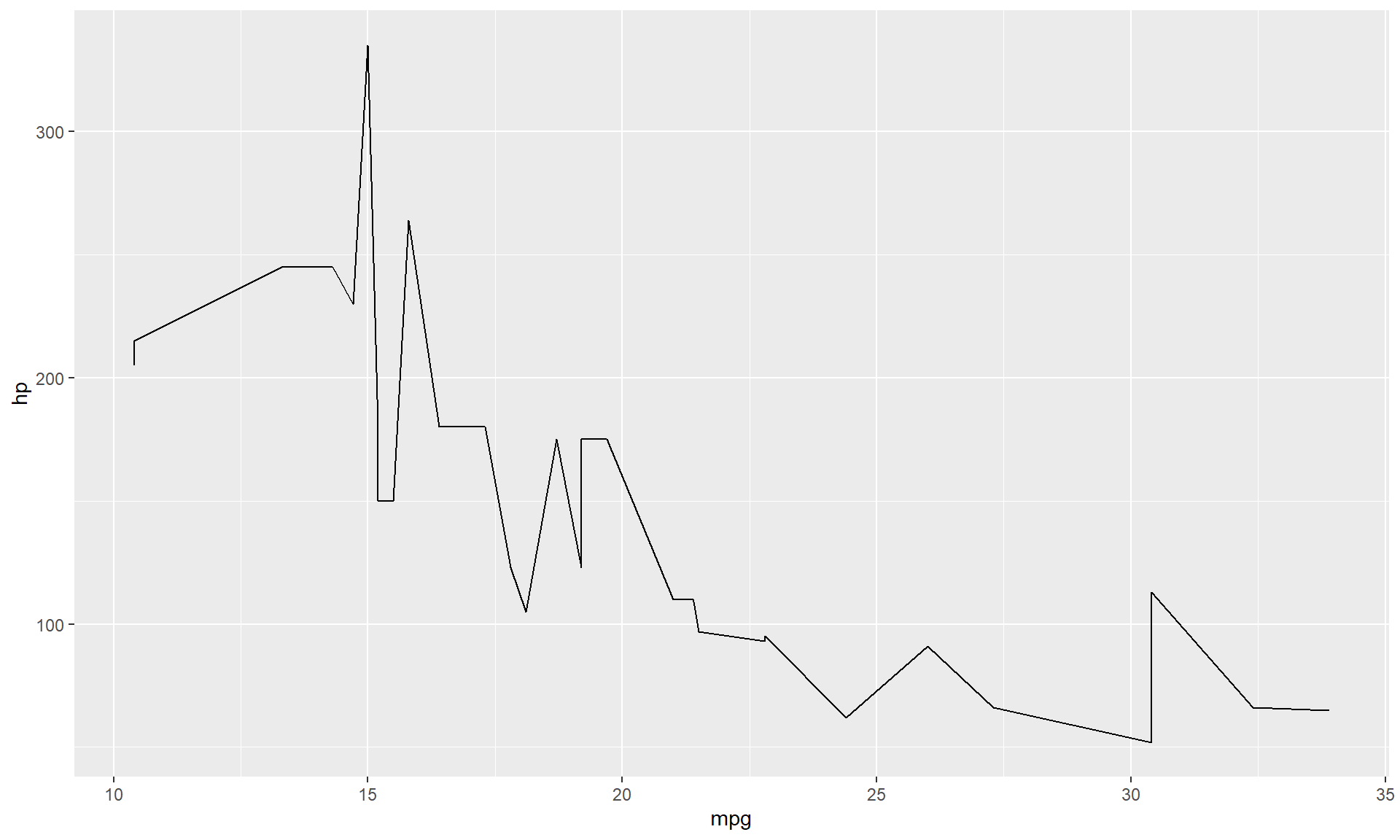

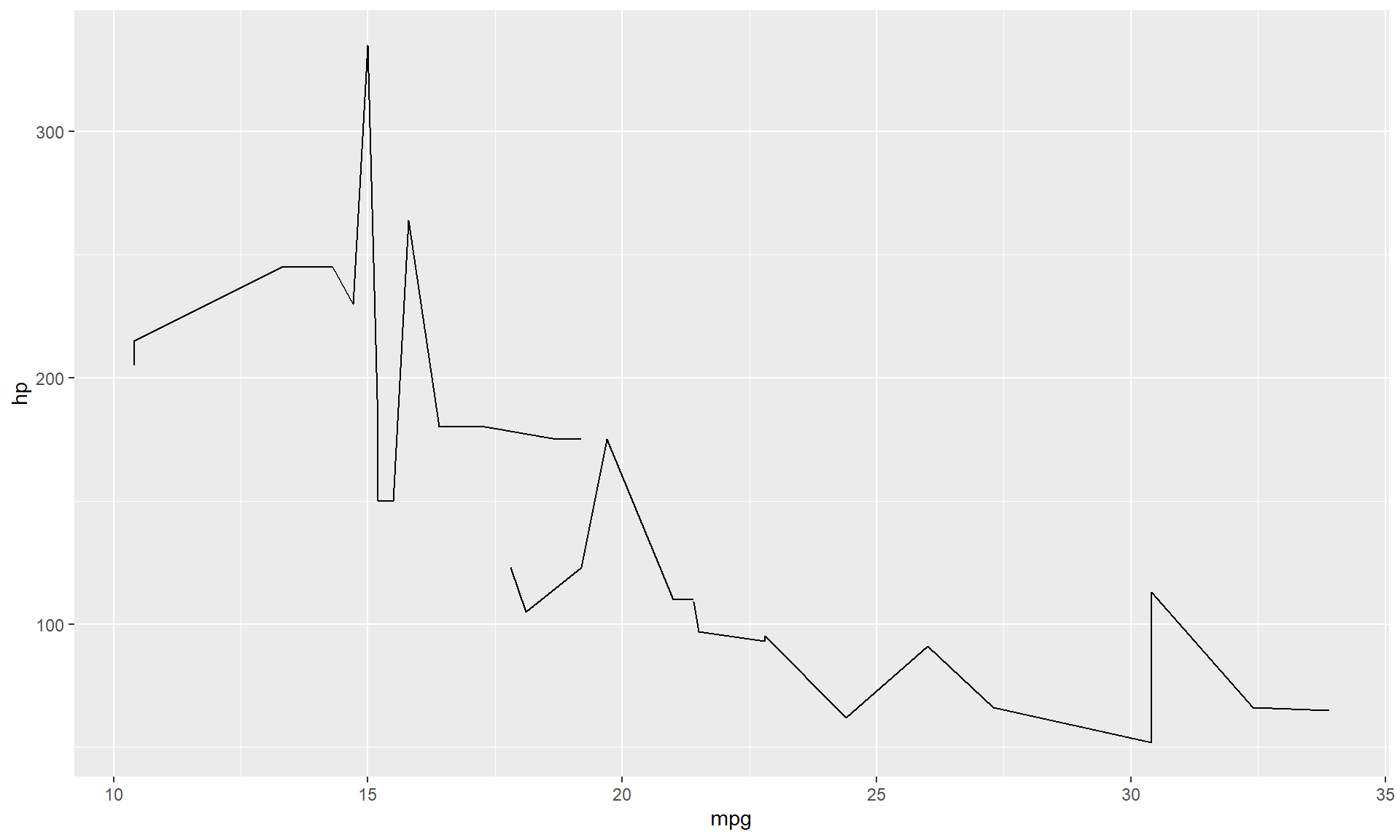

3.1 Without group, one line connects all points

ggplot(mtcars, aes(x = mpg, y = hp)) +
    geom_line()

3.2 With group, separate lines for each cylinder count

ggplot(mtcars, aes(x = mpg, y = hp, group = cyl)) +
    geom_line()

Often, group is set automatically when you use color, linetype, or fill, but sometimes you need explicit control.

4 Stage-Based Transformations: after_stat() and after_scale()

I already made a blog talking about delaying aes() arguments, you can check it here. These functions let you compute aesthetics based on statistical transformations or after scale transformations.

box::use(
    ggplot2[
        ggplot, aes, geom_histogram, geom_point,
        after_stat, after_scale, alpha
    ]
)

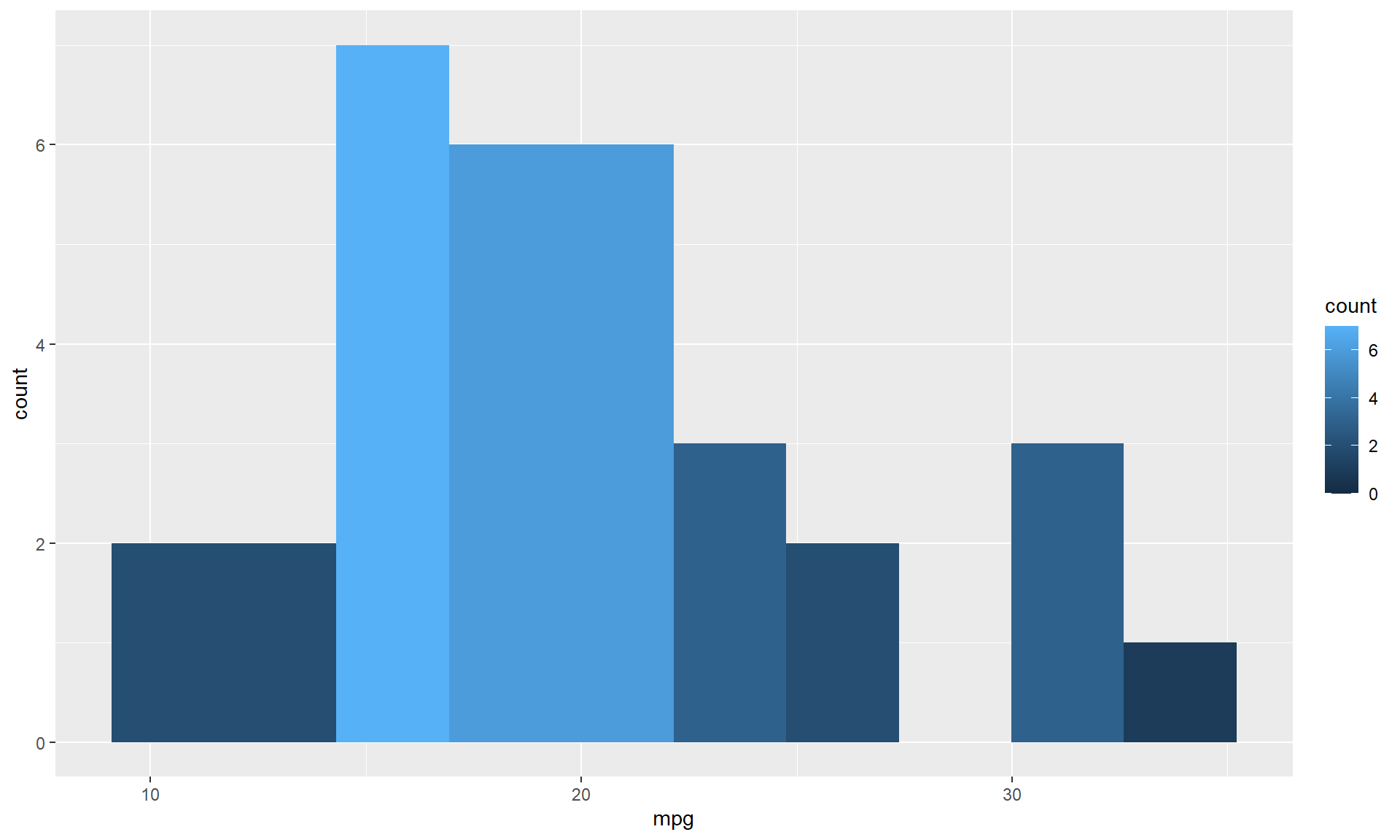

Color bars based on computed count from stat_bin

ggplot(mtcars, aes(x = mpg)) +
    geom_histogram(aes(fill = after_stat(count)), bins = 10)

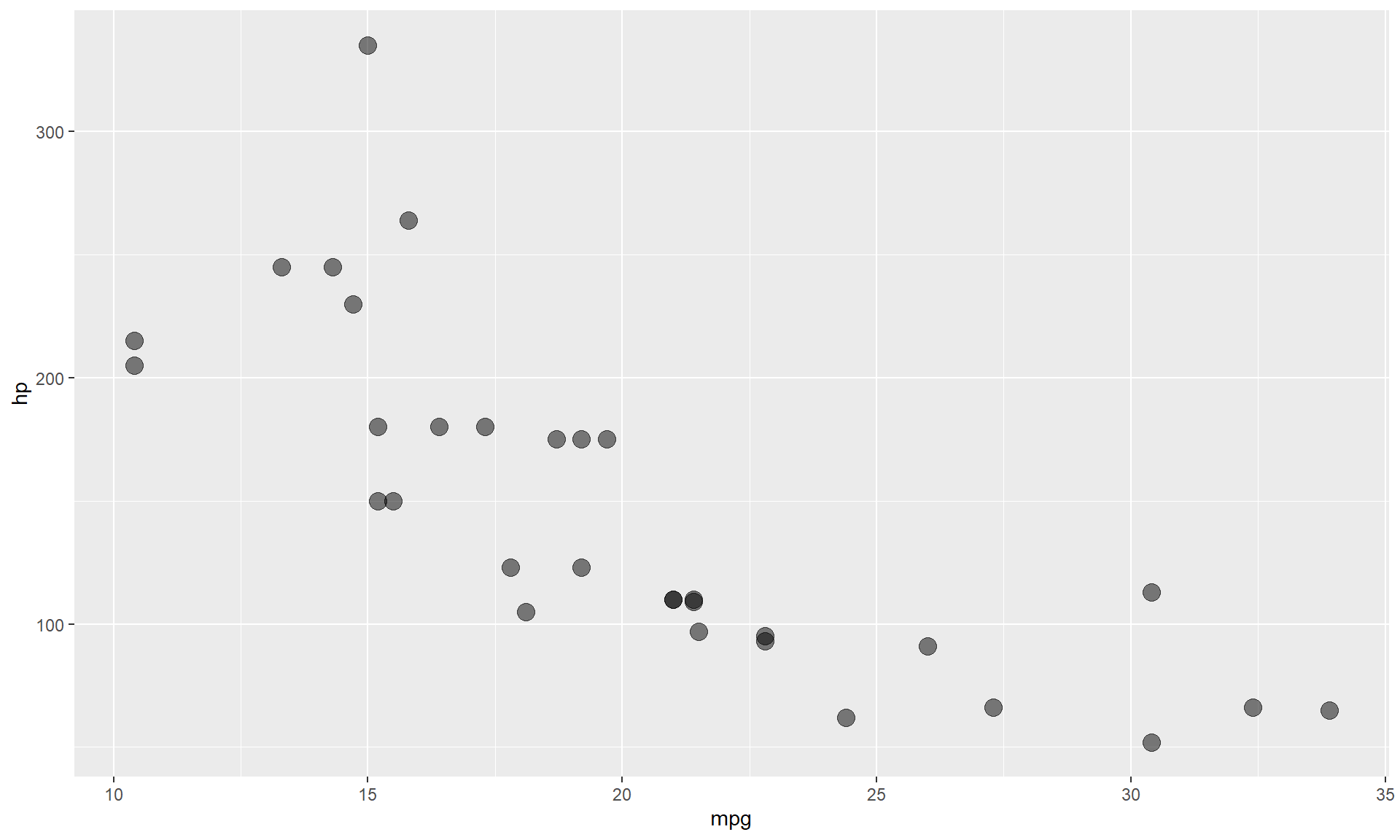

Use after_scale() to modify colors after scale mapping

ggplot(mtcars, aes(x = mpg, y = hp, color = factor(cyl))) +
    geom_point(aes(color = after_scale(alpha(color, 0.5))), size = 4)

after_stat() accesses variables computed by statistical transformations (like count, density, etc.). after_scale() works with the final scaled aesthetic values, allowing post-processing of colors, sizes, and more.

5 Tidy Evaluation and Programming with aes()

When you’re writing functions that create ggplot2 plots, you need to programmatically pass variable names. This is where tidy evaluation with { } (curly-curly) and !! (bang-bang) comes in.

The double curly brackets { } is more recommended

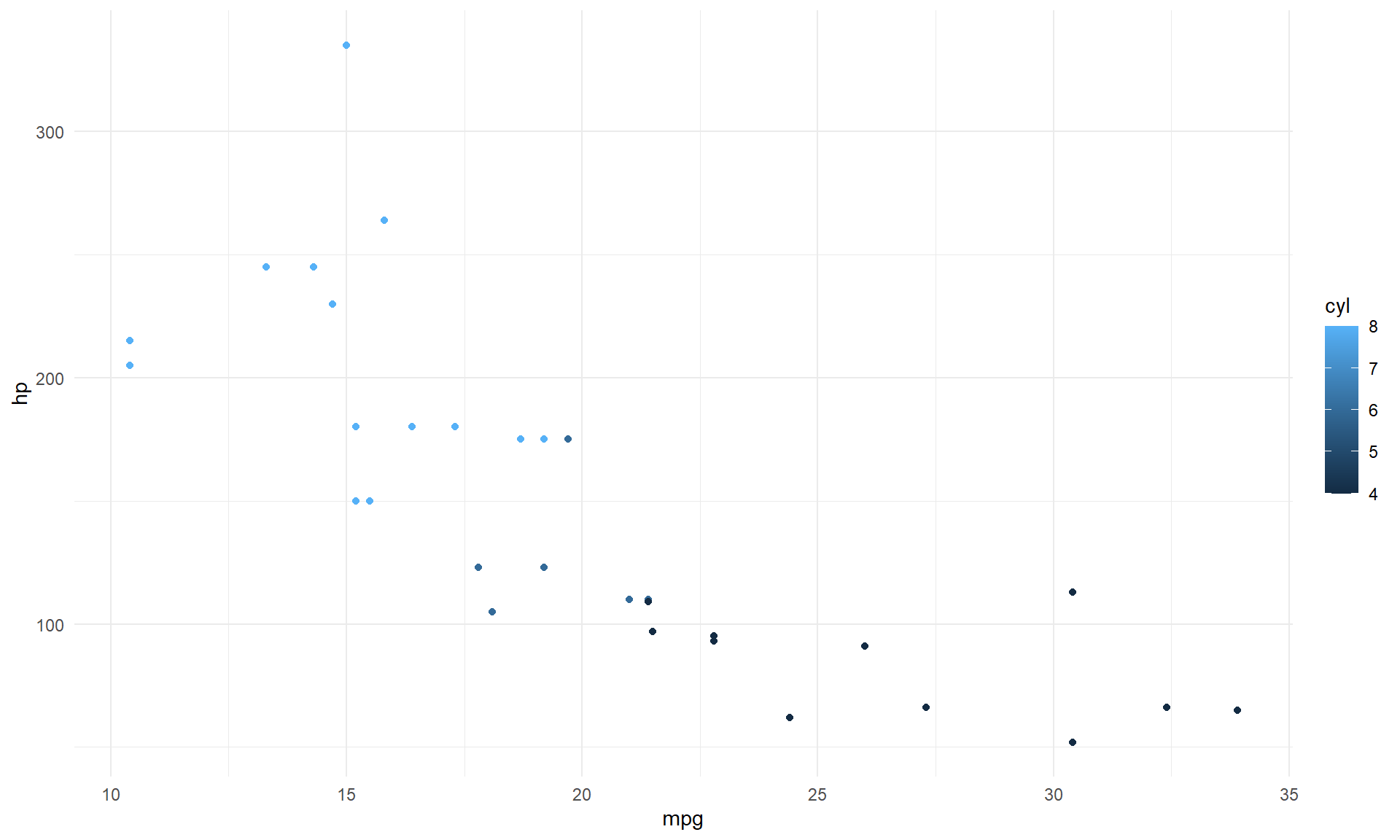

plot_scatter = function(data, x_var, y_var, color_var) {
    box::use(
        ggplot2[
            ggplot, aes, geom_point, theme_minimal
        ]
    )

    ggplot(data, aes(x = {{ x_var }}, y = {{ y_var }}, color = {{ color_var }})) +
        geom_point() +
        theme_minimal()
}

plot_scatter(mtcars, mpg, hp, cyl)

With rlang::ensym(), it accepts both string and a bare column

plot_scatter_string = function(data, x_var, y_var) {
    box::use(
        ggplot2[ggplot, aes, geom_point],
        rlang[ensym]
    )

    ggplot(data, aes(x = !!ensym(x_var), y = !!ensym(y_var))) +
        geom_point()
}

plot_scatter_string(mtcars, "mpg", "hp")

# plot_scatter_string(mtcars, "mpg", hp)
# plot_scatter_string(mtcars, mpg, "hp")
# plot_scatter_string(mtcars, mpg, hp)

This works because aes() uses quosures (quoted expressions with their environment) internally, which are part of rlang’s non-standard evaluation framework.

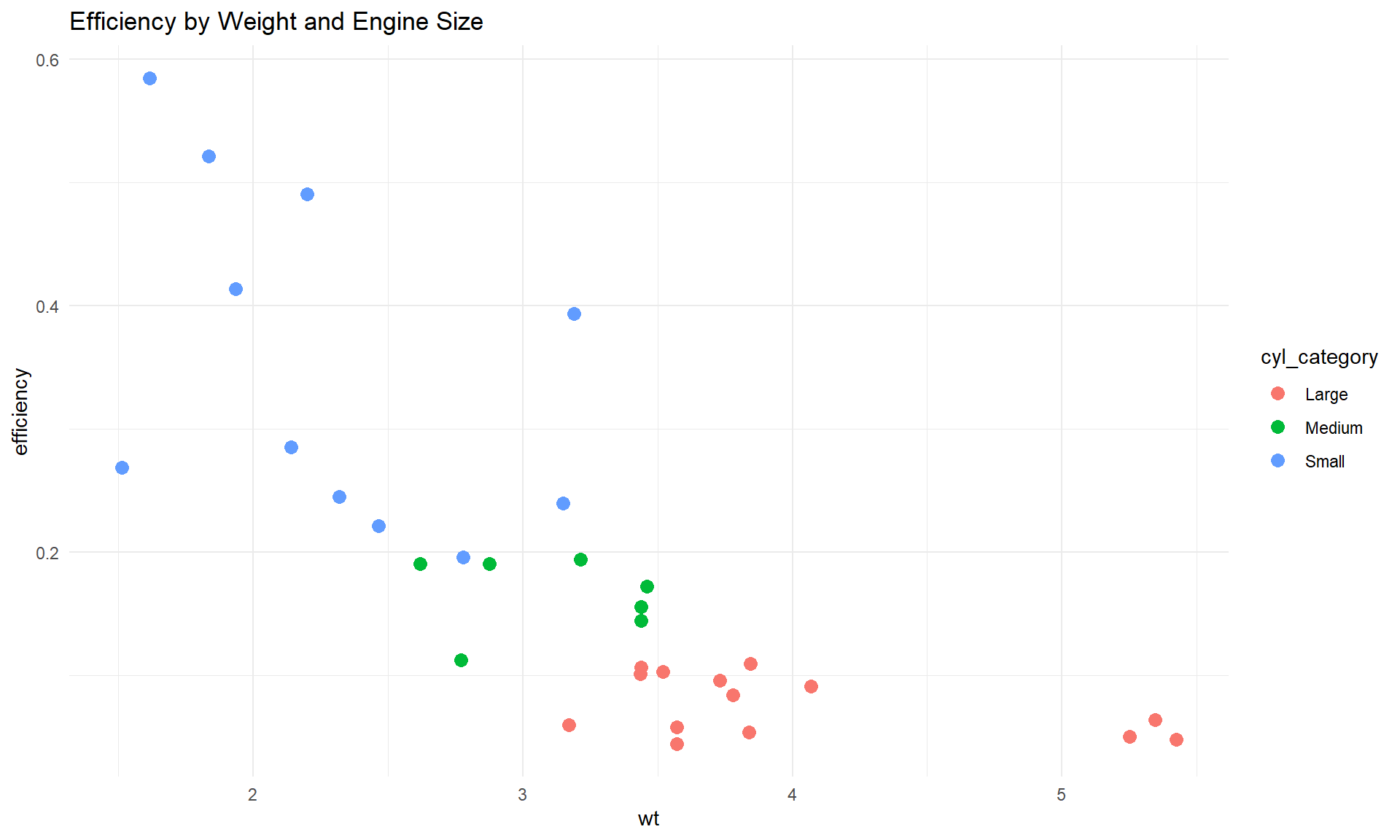

6 Integration with the Tidyverse

The aes() function plays beautifully with tidyverse workflows because they share the same evaluation model.

box::use(
    dplyr[mutate, case_when],
    ggplot2[ggplot, aes, geom_point, labs, theme_minimal]
)

mtcars |>
    mutate(
        efficiency = mpg / hp,
        cyl_category = case_when(
            cyl == 4 ~ "Small",
            cyl == 6 ~ "Medium",
            cyl == 8 ~ "Large"
        )
    ) |>
    ggplot() +
    aes(x = wt, y = efficiency, color = cyl_category) +
    geom_point(size = 3) +
    labs(title = "Efficiency by Weight and Engine Size") +
    theme_minimal()

You can pipe data through dplyr transformations and directly into ggplot2, and all the column names work seamlessly. This should be trivial to you since this is more taught by most ggplot2 tutorials.

7 Other aesthetic ‘weaponries’ you want to use

Beyond the common patterns, aes() has several advanced capabilities that showcase its flexibility.

Here, I can name few:

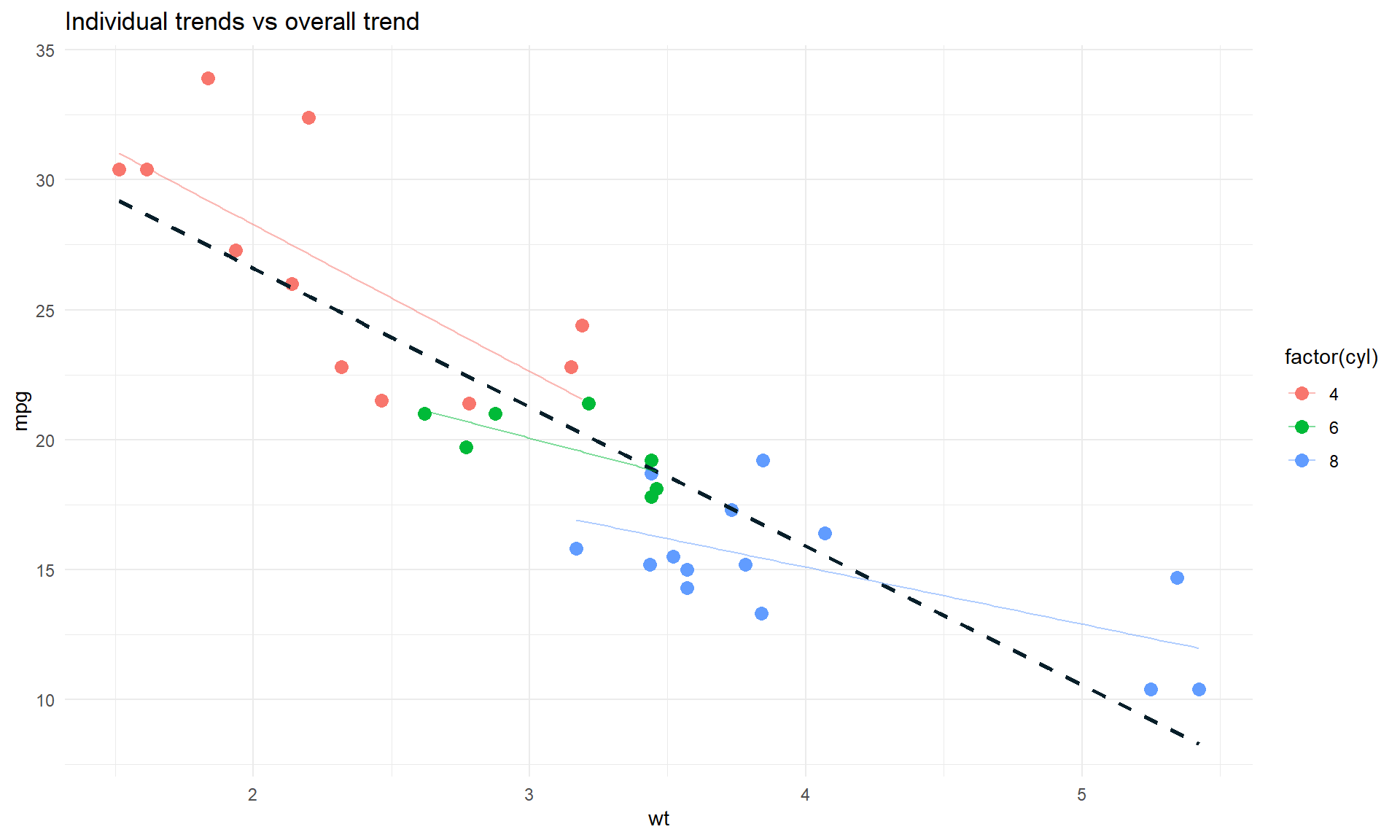

7.1 Inheriting and Overriding Aesthetics

You can set aesthetics at the plot level and override them in specific layers. This is useful for creating complex plots with different mappings per layer.

box::use(
    ggplot2[
        ggplot, aes, geom_point, geom_smooth, labs,
        geom_line, theme_minimal
    ]
)

ggplot(mtcars, aes(x = wt, y = mpg, color = factor(cyl))) +
    geom_point(size = 3) +
    # Override color for this layer only
    geom_smooth(
        aes(color = NULL),
        method = "lm",
        color = "#061E29",
        se = FALSE,
        linetype = "dashed"
    ) +
    # Then the regression lines for each group
    geom_line(stat = "smooth", method = "lm", se = FALSE, alpha = 0.5) +
    labs(title = "Individual trends vs overall trend") +
    theme_minimal()

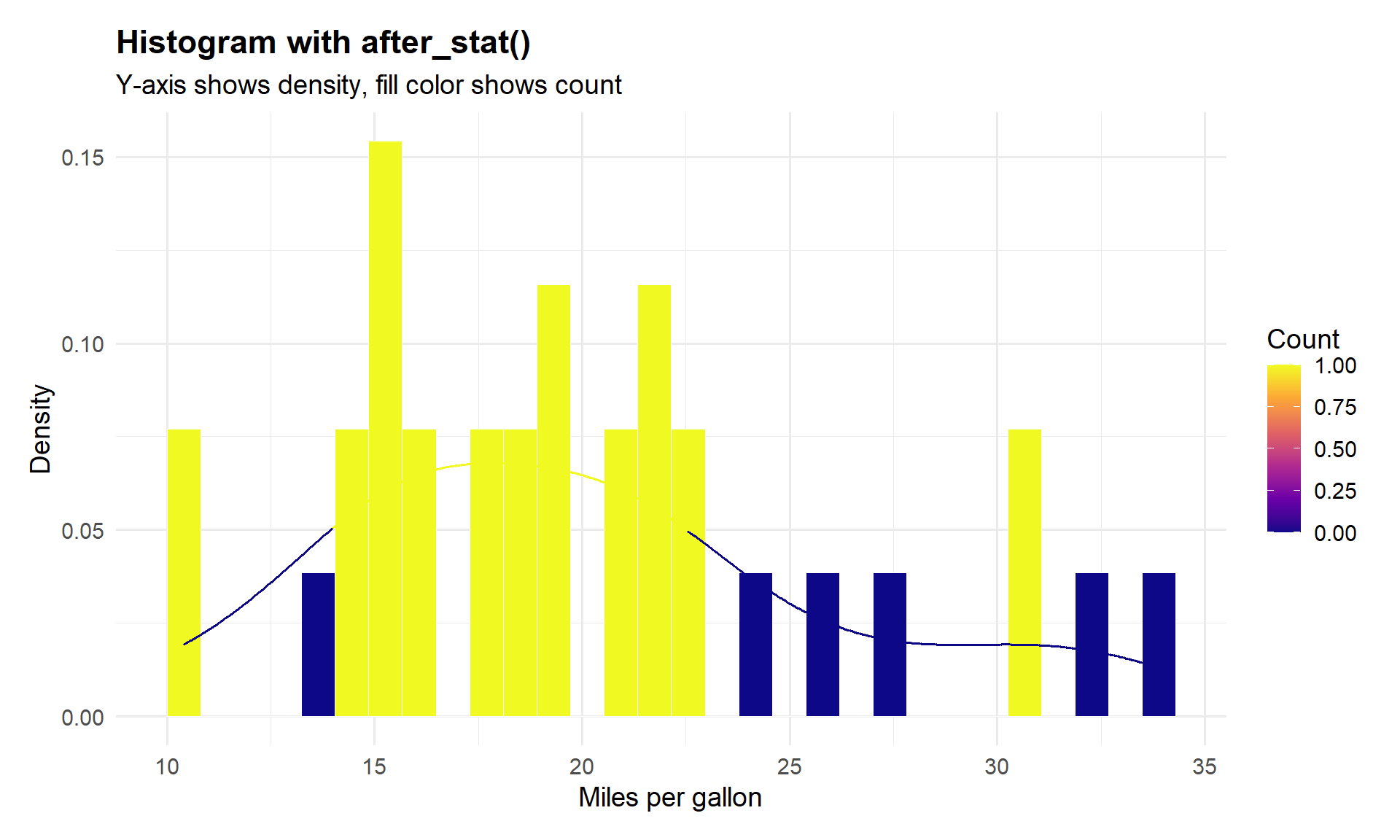

7.2 Using aes() with Statistical Transformations

Some geometries perform statistical transformations and create new variables. You can map aesthetics to these computed variables using after_stat() or by knowing the variable names.

box::use(
    ggplot2[
        ggplot, aes, geom_histogram, geom_line, after_stat,
        scale_fill_viridis_c, scale_color_viridis_c,
        labs, theme_minimal, theme, margin,
        element_text
    ]
)

ggplot(mtcars, aes(x = mpg)) +
    geom_histogram(
        aes(
            y = after_stat(density),
            fill = after_stat(density > 0.05)
        ),
        bins = 30,
        color = "white",
        linewidth = 0.2
    ) +
    geom_line(
        stat = "density",
        mapping = aes(
            y = after_stat(density),
            color = after_stat(density > 0.05)
        ),
        show.legend = FALSE
    ) +
    scale_fill_viridis_c(option = "plasma") +
    scale_color_viridis_c(option = "plasma") +
    labs(
        title = "Histogram with after_stat()",
        subtitle = "Y-axis shows density, fill color shows count",
        x = "Miles per gallon",
        y = "Density",
        fill = "Count"
    ) +
    theme_minimal(base_size = 14) +
    theme(
        plot.title = element_text(face = "bold"),
        legend.position = "right",
        plot.margin = margin(15, 15, 15, 15)
    )

Here we’re using after_stat(scaled) to access the scaled density values and conditionally coloring regions.

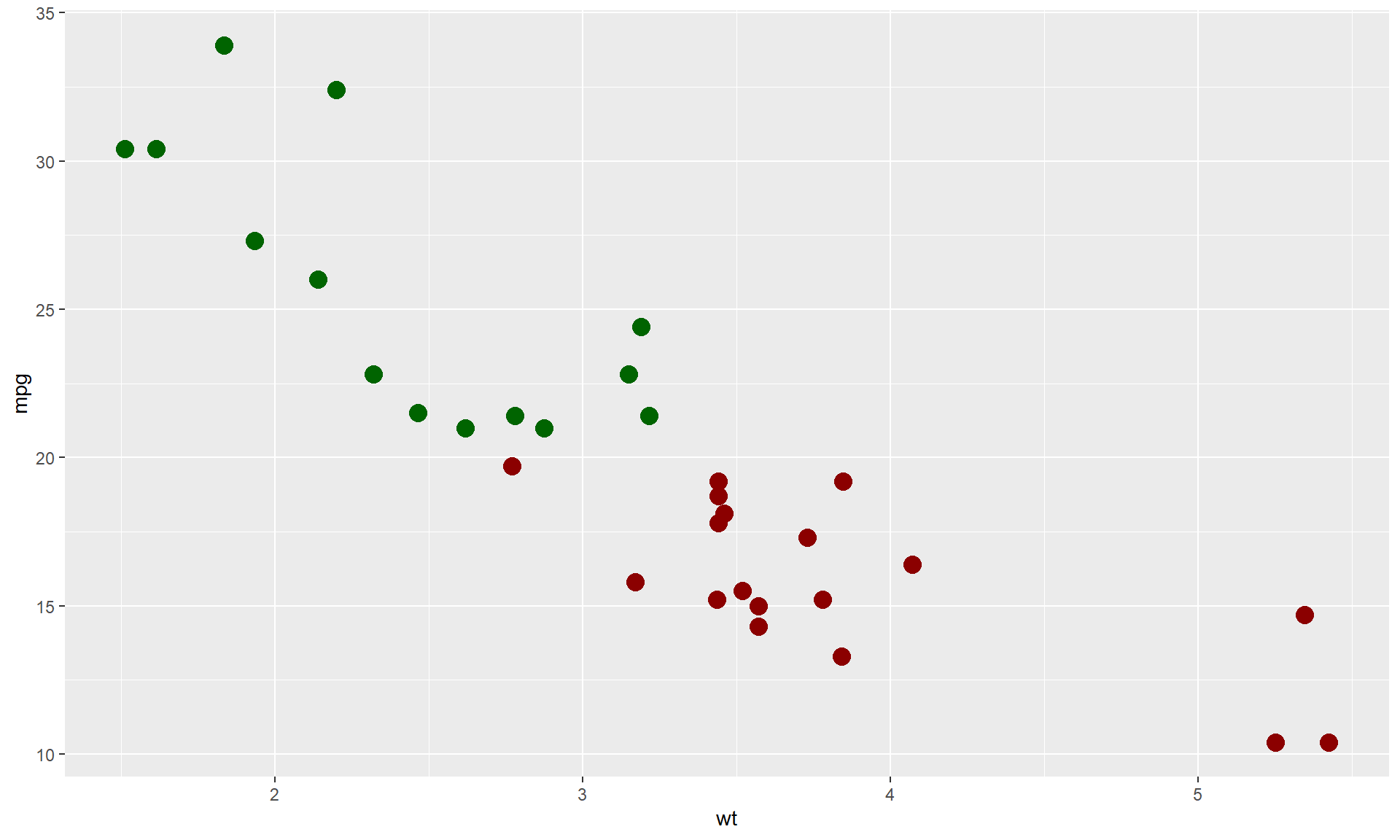

7.3 Constant aesthetics inside aes()

In this section, we piped down the result from the data wrangling with dplyr into ggplot2 layers. How about the transformation happened within the layer itself? Reminder that aes() is not far from Lisp macros and handles homoiconicity, which means it will handle an expression

box::use(
    ggplot2[ggplot, aes, geom_point, labs, scale_color_identity],
    dplyr[if_else]
)

ggplot(mtcars) +
    aes(x = wt, y = mpg, color = I(if_else(mpg > 20, "darkgreen", "darkred"))) +
    geom_point(size = 4) +
    scale_color_identity(
        guide = "legend",
        labels = c("Low MPG", "High MPG"),
        breaks = c("darkred", "darkgreen")
    ) +
    labs(color = "Efficiency")

I() tells ggplot2 to use the values as-is without scaling, while scale_color_identity() creates a legend.

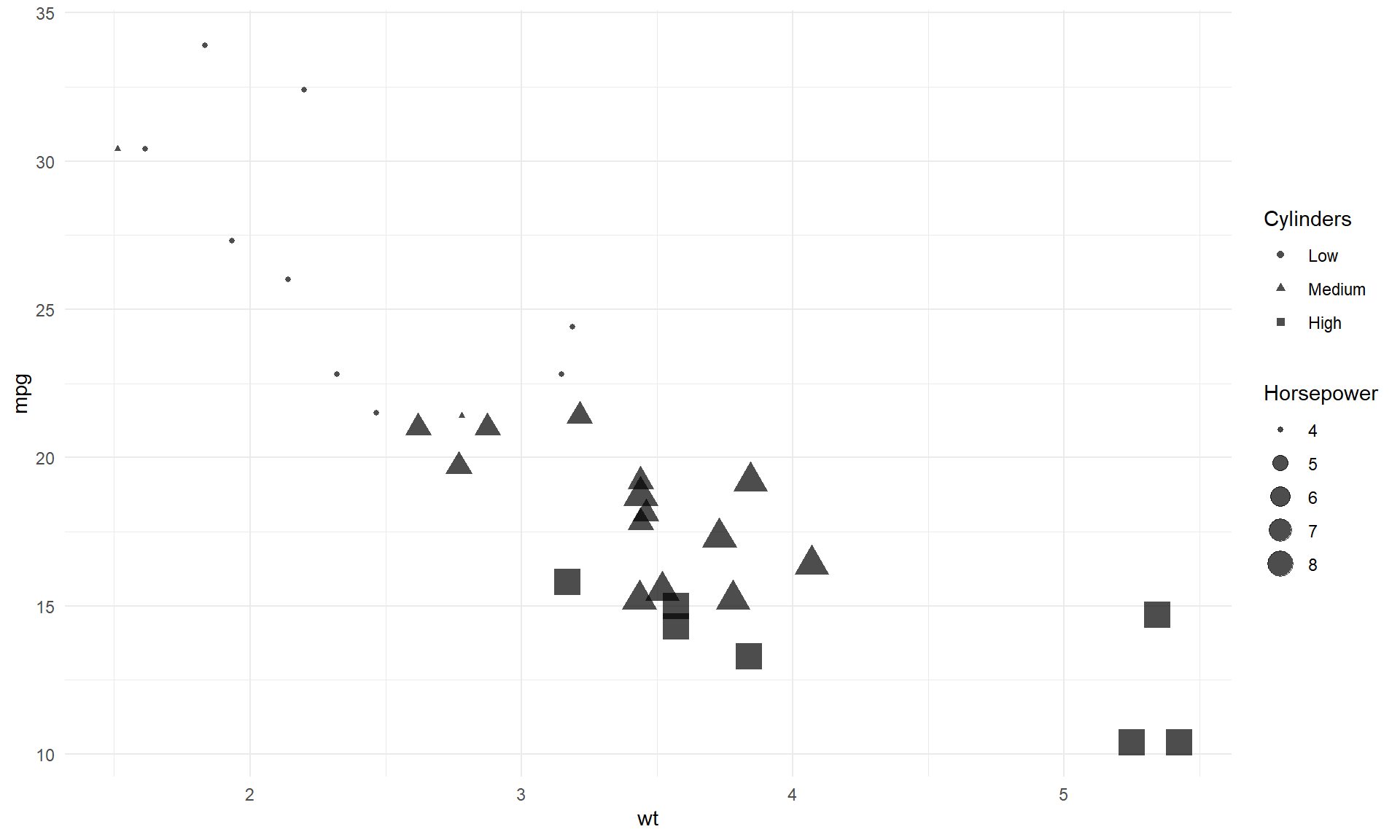

7.4 Dynamic Aesthetics

You can create aesthetics on-the-fly using R functions directly in aes(). Here, I cut down hp into 3 groups, then use it as a basis for the shapes.

box::use(
    ggplot2[ggplot, aes, geom_point, labs, theme_minimal]
)

ggplot(mtcars, aes(x = wt, y = mpg)) +
    geom_point(
        aes(
            size = cyl,
            shape = cut(
                hp,
                breaks = c(0, 100, 200, 400),
                labels = c("Low", "Medium", "High")
            )
        ),
        alpha = 0.7
    ) +
    labs(size = "Horsepower", shape = "Cylinders") +
    theme_minimal()

8 My argument regarding ggplot2 implementation

I’ve argued with Python users who say “there’s {plotnine} in Python and you have all the features in ggplot2 and you can’t look back.” — it’s not even close. I maintain that it’s just a pale imitation: you can’t really fully replicate this package. It’ll take a lot to FULLY replicate it, and it’s TOO complicated for Python to replicate.

The thing is, R in general is functional; the arguments are lazily evaluated by default and similar to Lisp macros, where the AST can be transformed/modified during compile-time—you can pretty much manipulate and inspect expressions before they’re evaluated, giving you metaprogramming capabilities that are first-class citizens in R.

8.1 Comparison

Here’s a side by side comparison:

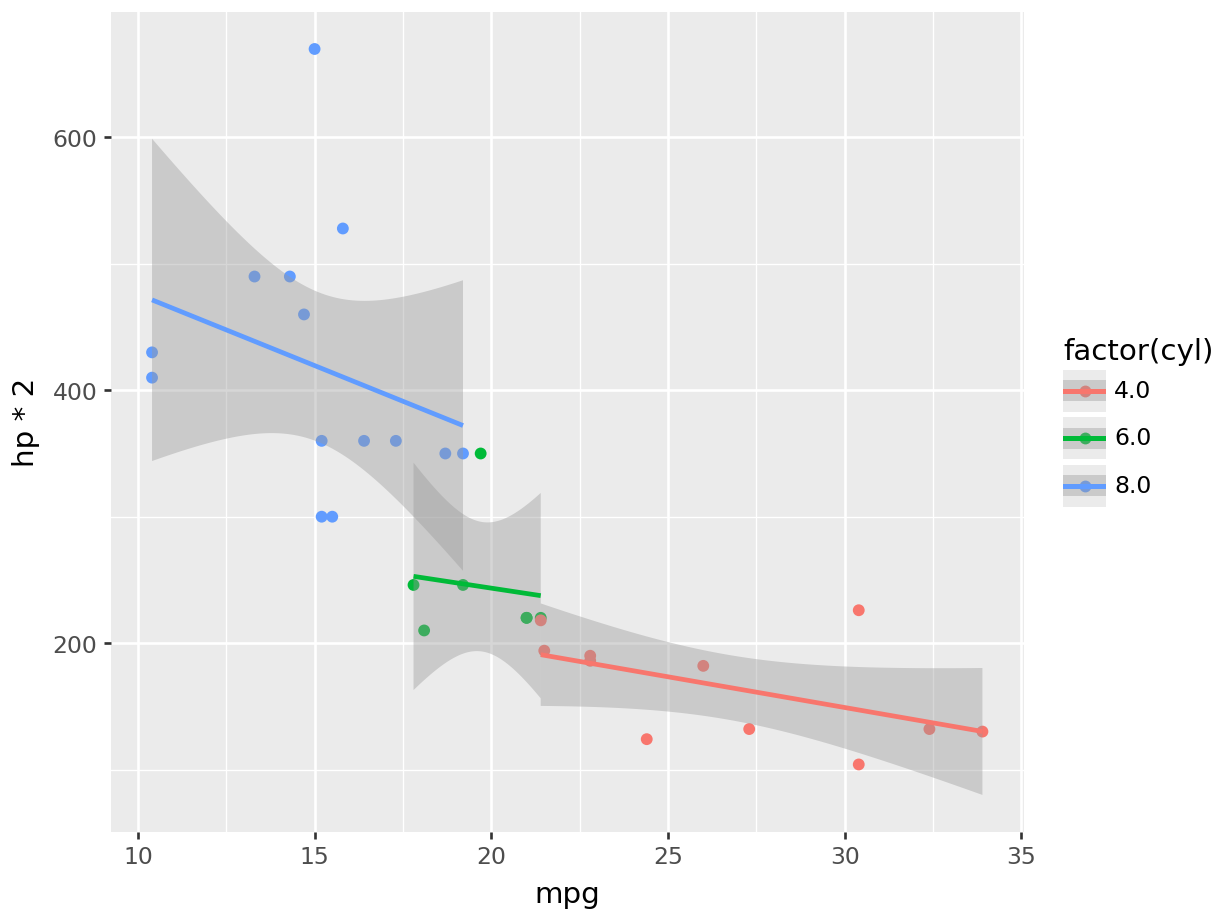

This package uses first-class metaprogramming — you can use clean, bare variable names. You can also override and transform inline.

box::use(
    ggplot2[ggplot, aes, geom_point, geom_smooth]
)

ggplot(mtcars, aes(x = mpg, y = hp * 2, color = factor(cyl))) +
    geom_point() +
    geom_smooth(aes(y = hp * 2), method = "lm")

Python in general lacks this environment as in R, we refer it as “computing on the language”, which dubbed later by Hadley Wickham as “non-standard evaluation”, one of the techniques used in R metaprogramming.

Supplying arguments within aes() from {plotnine} package works with strings. Yes, it works, but notice the quotes.

from plotnine import ggplot, aes, geom_point, geom_smooth

(ggplot(mtcars, aes(x = 'mpg', y = 'hp * 2', color = 'factor(cyl)')) +
    geom_point() +
    geom_smooth(aes(y = 'hp * 2'), method = 'lm'))

8.2 Why stringly typed code is fundamentally problematic

Let me clarify: The Python version suffers from being stringly typed. The fact that {plotnine} forces to approximate things in ggplot2 R using strings where structured data types should be used. This creates concrete technical problems, so hear me out:

Loss of type safety and compile-time guarantees. All of the arguments supplied into aes() are valid strings to Python, but only one works
```
aes(x = 'mpg')      # 1
aes(x = 'mpgg')     # 2
aes(x = 'mpg + ')   # 3
aes(x = 42)         # 4
```
1. This syntax is correct
2. You made a typo — no error until runtime
3. Syntax error in the mini-language - no error until runtime
4. Wrong type, maybe? Depends on plotnine’s implementation
In R, aes(x = mpg) is a proper expression that participates in R’s type system and evaluation model.
You’re implementing a parser for a mini-language

Plotnine must parse strings like 'np.log(mpg) if mpg > 0 else 0' at runtime. This means:
- Writing a lexer/parser for Python expressions
- Handling operator precedence, function calls, conditionals
- Maintaining this parser as Python evolves
- Debugging when the parser behaves differently than Python itself
Note that supplying an argument with some kind of transformation, e.g. aes(y = 'np.log(mpg)') still works.

In R, it handles (lazy) evaluation:
```
aes(x = ifelse(mpg > 0, log(mpg), 0))
```
You can take this in different level with stage(), after_stat(), and after_scale().

The genius invention about aesthetics in ggplot2
